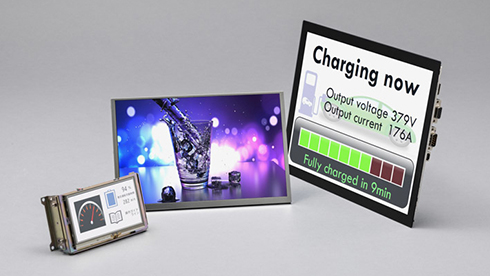

Display Solutions
TOPPAN display solutions,
which incorporate high-performance,
highly reliable TFT LCDs with touch panels and circuit boards,
will help streamline development resources for industrial equipment.
-
PCAP / Cover Glass
-
-
Circuit Board

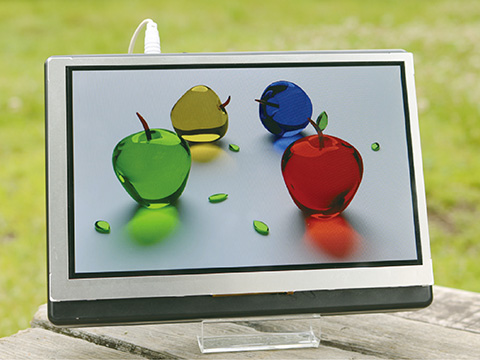

TOPPAN has an extensive lineup based on its unique Blanview™ TFT LCD, which has excellent outdoor visibility and low power consumption.
In addition, by accurately incorporating the display peripheral technologies required for embedded devices and providing a one-stop service for display solutions ranging from small to large, we contribute to resolving issues that customers face in the design and development process.

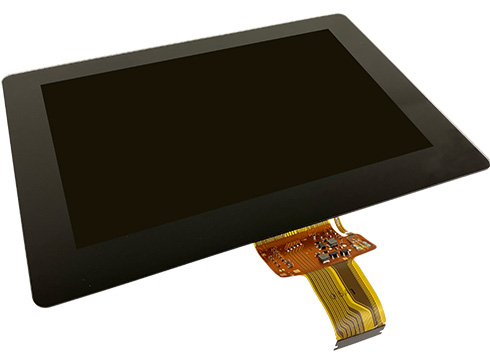

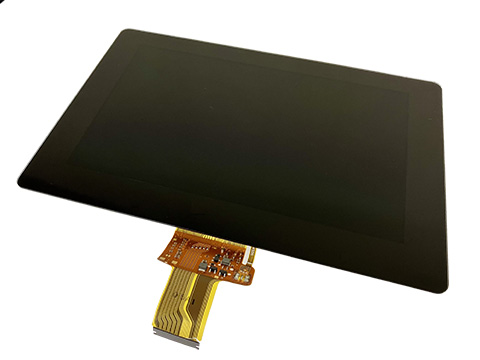

PCAP / Cover Glass included type
Touch panels that integrate display and input are increasingly being adopted for industrial equipment applications. Generally, customers would purchase LCDs and touch panels separately and then bond them together, but TOPPAN provides its own LCDs bonded with PCAP or cover glass.
Optical bonding improves the contrast, robustness and durability of the display, making it possible to make the most of the characteristics of Blanview™.
Features
- We have installed the latest lamination equipment in our own factory, and can handle small lots for industrial equipment and automotive applications.
- カWe accept custom cover glass orders.

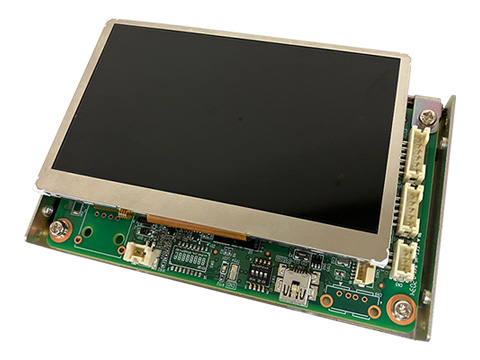

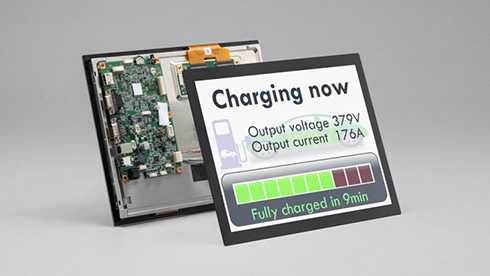

Circuit board included type
We provide circuit boards tailored to customer applications, integrated with TFT LCD modules and touch panels.
There are two types of circuit boards available: a video input type that reads the video signal output from a PC or single board computer (SBC) and displays image data in real time, and a command control type that displays image data written in memory using control signals.
Video Input Type
- Can be used immediately by directly connecting to a standard video signal (such as an HDMI signal).
- OSD (on-screen display) function allows image and brightness adjustments on the board.
Command Control Type
- Displays equipped with analog meters, black and white LCDs, 7-segment displays (LEDs), etc. can be converted to color LCDs with a simple system.
- Drawing software is included, making it easy to create images.

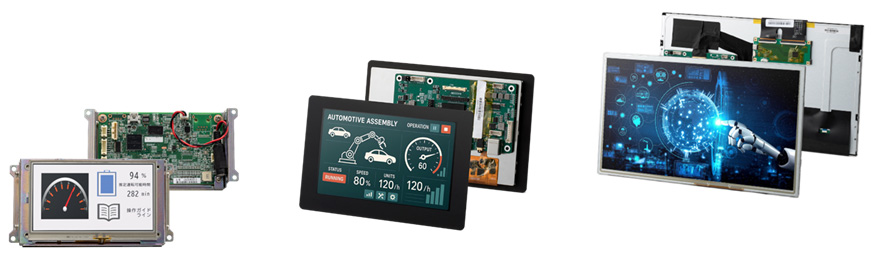

Circuit board included type lineup

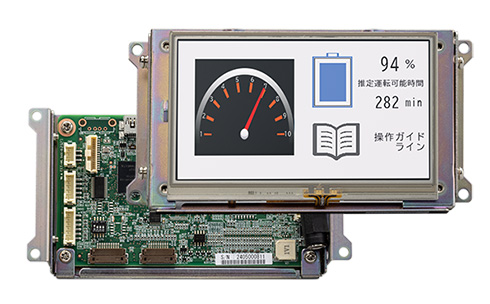

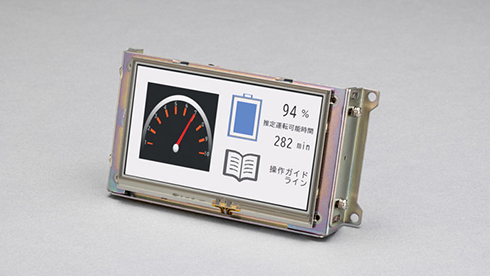

COU43H4P40URC 【Under Development】
Specifications Outline
| Item | Specifications |
|---|---|
| Size | 4.3” (10.9cm) |
| Resolution | 480 x 272 |
| External dimensions (mm) |
139×73×23.4 (TBD) |
| Brightness | 1000 cd/m2 (TBD) |
| Number of colors (max) |
65,536 |
| Character | Select one of English + supported languages (Japanese, Korean, European languages) |
| Built-in memory | 20MB(for image storage) |
| Touch panel type | Resistive touch panel, 4-wire |
| Serial interface | RS232,RS422/485 |
| Power supply voltage |
DC 5V |
- The highly robust Blanview™ G series 4.3” WQVGA is equipped with a resistive touch panel and a command-controlled circuit board.
- It can be connected to a microcontroller board via a single serial port, so you can easily and quickly upgrade 7-segment displays and switches to touch panel displays.
- Available in an open frame shape that is easy to install in embedded devices.
