PCAP/Cover Glass Bonding
PCAP/Cover Glass Bonding
Projective capacitive (PCAP) touch panels is increasing in the industrial equipment and mobility industries.
Traditionally, customers would procure LCDs and touch panels separately and then laminate them together. but this presented challenges such as the need for component procurement and inventory management, and the time required to analyses the cause of problems when they occurred.
Therefore, TOPPAN offers optically bonded display that laminate touch panel and cover glass with our LCDs. Optical bonding technology improves display contrast and durability, maximizing the characteristics of Blanview™.

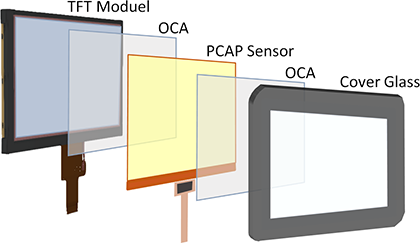

Optical Bonding
Optical bonding is a bonding technology that fills the space between the touch panel and the LCD with a transparent optical adhesive layer to integrate them. Conventional methods that leave an air gap tend to cause reflections, reducing visibility. Optical bonding reduces reflections and glare, enabling excellent visibility even outdoors.
Furthermore, the elimination of the air layer improves impact resistance. It is particularly effective in industrial equipment and mobility applications where visibility and reliability are required.
Customized Cover Glass
TOPPAN offers various custom services including outline processing and surface treatment for cover glass.
For further details, please feel free to contact us via the form at the bottom of the page.
[Examples of Custom Cover Glass]
| Item | Detail |
|---|---|
| Glass material | Soda lime/aluminosilicate glass |
| Surface treatment | Clear or AG (AR, AF available) |
| Glass treatment | Chemical strengthened glass (2-sided or 6-sided) |
| Glass Thickness | 0.7～3.0mm |
| Durability | UV compatible supported |
| Logo printing | With/without logo (number of colors if logo is available) |
Use Case
-
Handy Application
-
Medical
-
Measuring equipment
-
Mobility(motorcycle)
-
Cycle computer
-
Marine

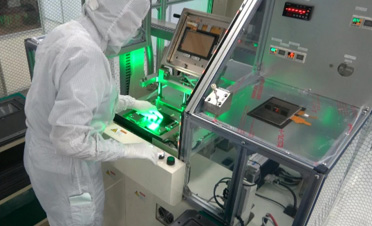

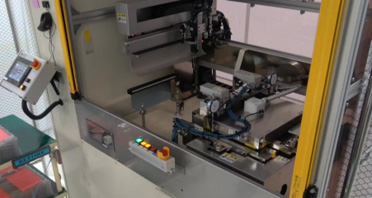

Optical bonding production site

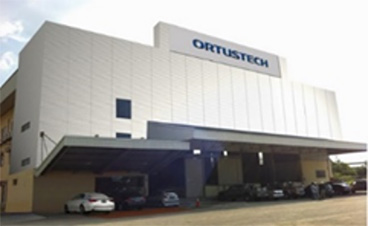

The optical bonding process started at our Malaysian factory, continuous production from LCD module process.
