Barrier Film

GL BARRIER

Barrier Film Performance Materials & Energy Medical & Pharma Goods Foods & Confectionery Toiletries Beverages Industrial Materials Earth-Friendly Materials

A transparent vapor-deposited barrier film that has a leading share of the global market and is used worldwide.

Our GL BARRIER lineup encompasses a wide array of variations, including transparent barrier film that offers the world's highest level of performance.
This film has many outstanding properties due to the use of TOPPAN's original transparent vapor deposition and coating technologies.

The barrier coating layer and inorganic vapor-deposited layer achieve both stable barrier performance and outstanding eco-friendliness.

GL BARRIER consists of a substrate film (PET, PP, PE, or nylon) laminated with a barrier coating layer and an inorganic vapor-deposited barrier layer (alumina or silica).
Due to this outstanding layer structure combining an original coating layer with a high-grade vapor-deposited layer, the film displays stable barrier properties and is easy to use in post-production processes such as printing and laminating.

GL BARRIER Features

High barrier performance

Lineup of films with highest barrier performance
-GX-P-F: High barrier films with performance comparable to that of AL foil
-GL-RD: Suitable for long time and high temperature retorting
Stable performance
-Almost no dependence on temperature or humidity, making it suitable for a wide range of applications
-Resistant to barrier degradation even in high-humidity environments for long periods of time
Durable barrier layer
-Retains barrier properties even after repeated bending
-Almost no degradation in barrier properties even after retort processing, etc.

Metal-free, Non-conductive

Microwavable
-Can be used in various microwavable packaging types
Metal detector friendly
-Capable of detecting foreign matter contamination

Transparency

High transparence
-Enables product appeal by showing the contents

Eco-friendly

Source reduction of packaging materials
-CO₂ emission can be reduced by source reduction of packaging materials
Eco-friendly
-Almost no residue is generated and no harmful gases are emitted during incineration
-Lineup of eco-friendly products for mono-material packaging
-Lineup of products using recycled resources

GL BARRIER Applications

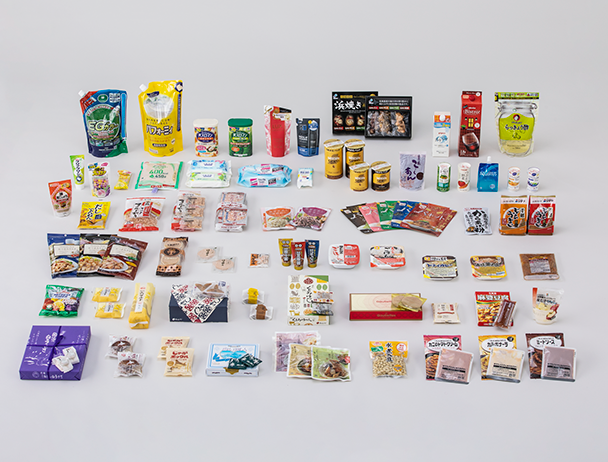

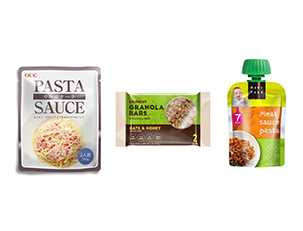

Flexible Packaging / Retortable Packaging

The outstanding barrier performance prevents the quality of the contents from deteriorating (due to oxidation, drying, etc.), thereby helping to maintain product value over the long term.

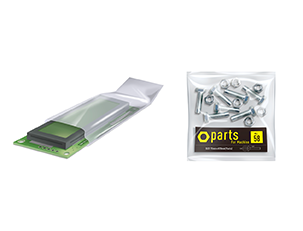

Electronics Packaging

Making the packaging transparent enables people to visually confirm what is inside.
The barrier performance matches that of an aluminum-foil structure to reliably protect the contents.

Packaging for Medical & Pharma Goods

Making the packaging transparent helps to prevent misuse, and the outstanding barrier performance prevents the contents from hardening or deteriorating.

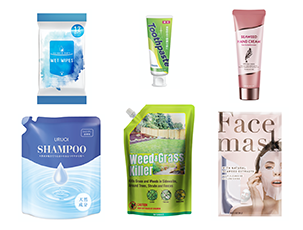

Toiletries

Our film prevents aromas from escaping. It is exceptionally easy to process and is even suitable for forming into spout or tube shapes.

Composite Paper Containers for Liquids (EP-PAK, Cartocan, etc.)

By combining GL BARRIER with paper, our environmentally friendly paper packaging enables the long-term storage of liquid contents.

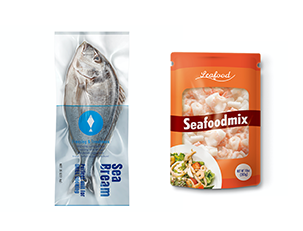

Chilled or Frozen Food Packaging

The excellent barrier performance prevents the deterioration of the contents (due to oxidation, drying, etc.).

GL BARRIER Lineup

A full lineup of GL FILM products with excellent oxygen and water vapor barrier properties is available.

Application (Grade)

Product name

Substrate

Applications and features

Water vapor transmission rate

Oxygen transmission rate

General application

GL-AE

【Substrate】PET

【Applications & features】General use (for a wide range of applications such as dry food) *Not suitable for liquid contents

【WVTR】0.6

【OTR】0.2

GL-AEC-F

【Substrate】PET

【Applications & features】High moisture barrier grade for general use

【WVTR】0.2

【OTR】0.3

High barrier

GX-P-F

【Substrate】PET

【Applications & features】High barrier properties comparable to AL foil *Not suitable for liquid contents

【WVTR】 0.05

【OTR】0.1

Boil and Retort

GL-ARH

【Substrate】PET

【Applications & features】For long time and high temperature retorting

【WVTR】0.4

【OTR】0.2

GL-RD

【Substrate】PET

【Applications & features】High barrier, long time and high temperature retorting, high durability

【WVTR】0.2

【OTR】0.1

Mono-material

GL-BP Series

【Substrate】PP

【Applications & features】General use (suitable for hot filling and liquid contents)

【WVTR】0.2 (GL-BP)

【OTR】0.1 (GL-BP)

GL BARRIER Performance

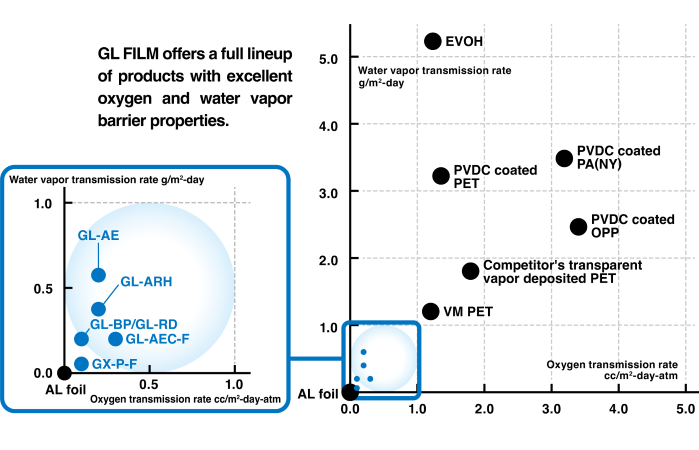

Comparison of Barrier
Film Performance

Temperature
Dependence

Humidity Dependence

Water Evaporation
Prevention Performance

Flex Resistance

We offer an extensive lineup to handle various needs, including both grades that can be used for retort processing and grades that can be used as an alternative to aluminum foil.

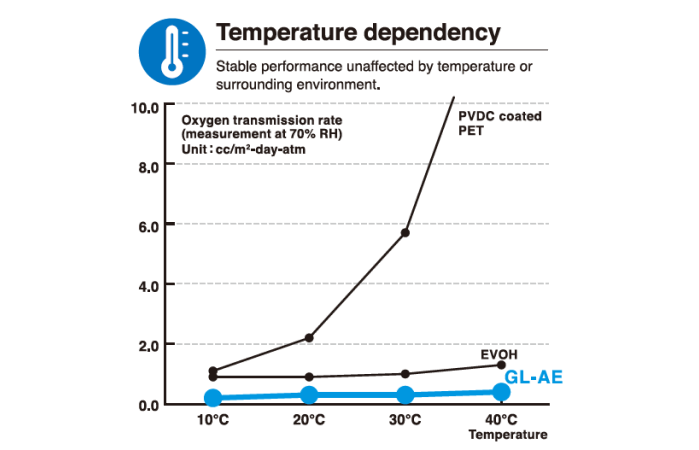

Our film is not affected by the temperature of the surrounding environment and demonstrates stable barrier performance.

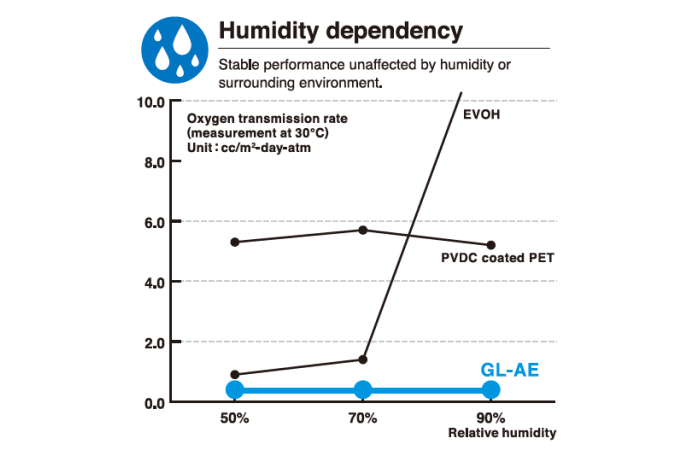

Our film is not affected by the humidity of the surrounding environment and demonstrates stable barrier performance.

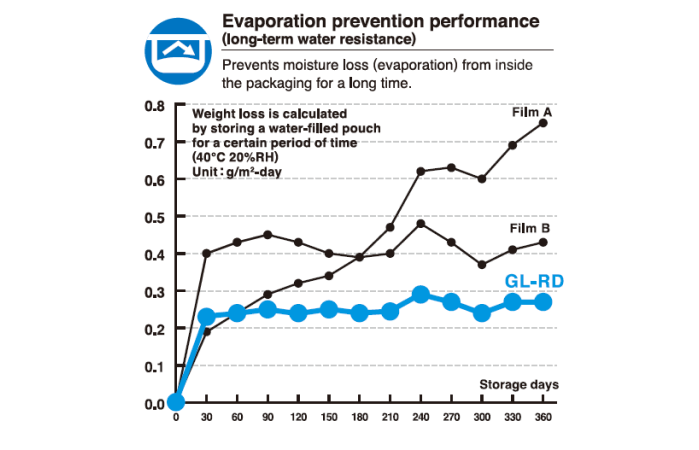

Thanks to its outstanding ability to prevent water evaporation from the contents, our film helps to prevent drying and weight (density) changes.

Water Evaporation Prevention Performance

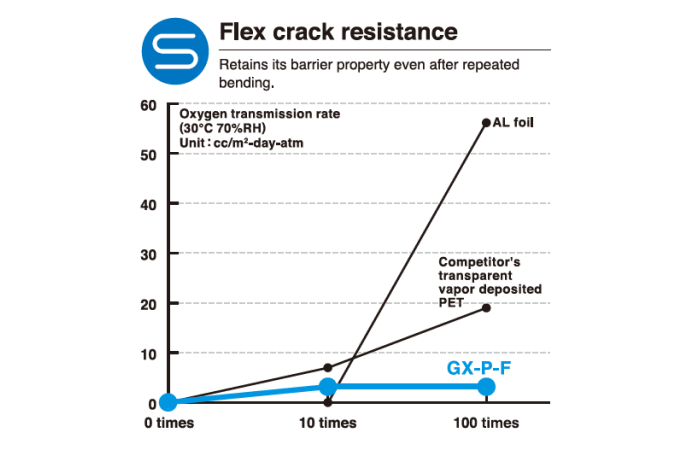

Our film's outstanding flex resistance enables it to maintain barrier performance even after being bent.

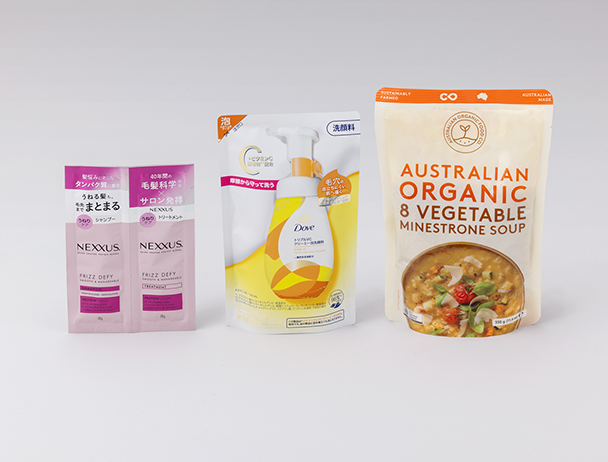

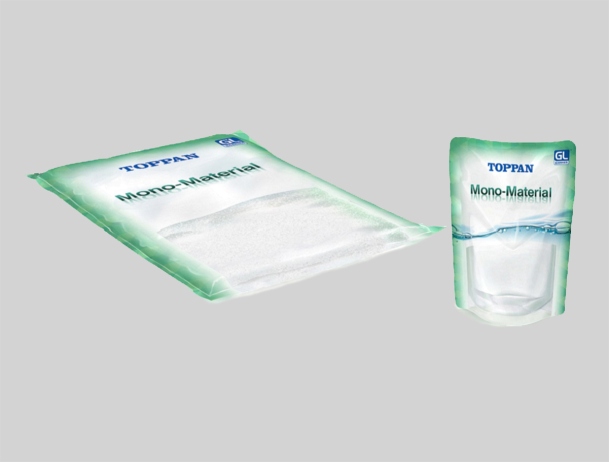

Mono-material Packaging Materials

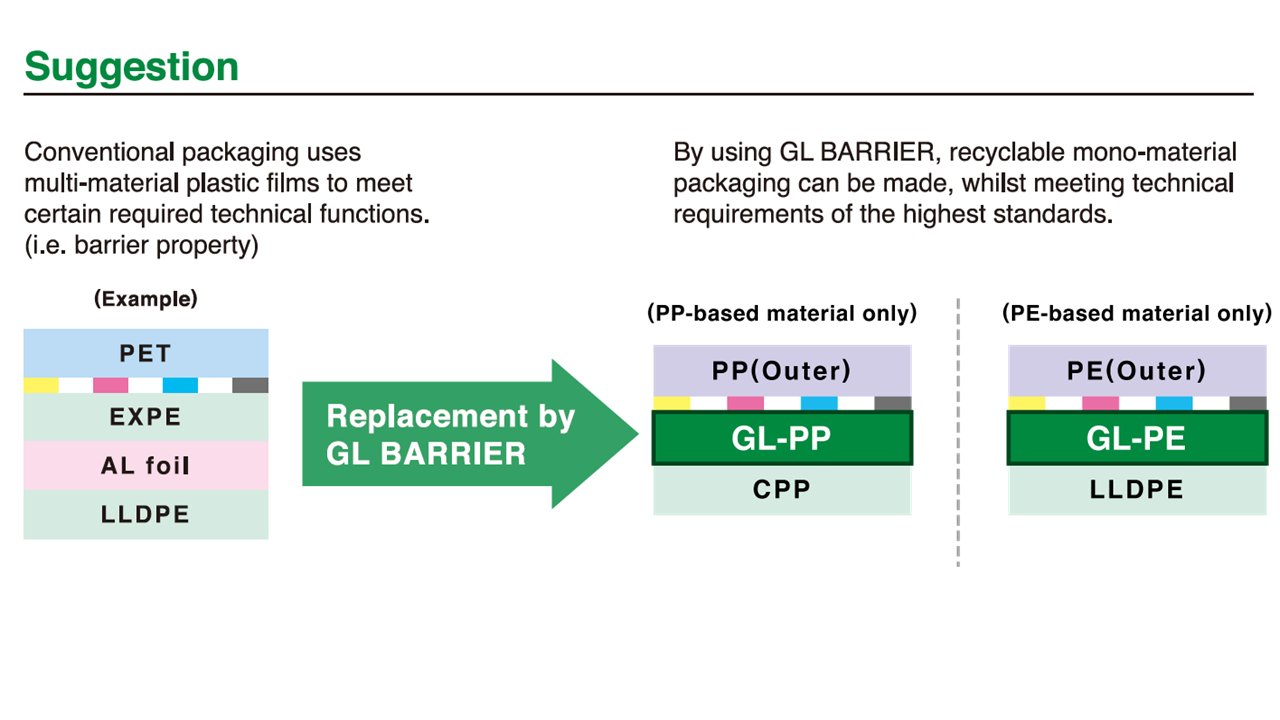

Mono-material packaging consists of a single material, making it more suitable for recycling than packaging made of composite materials.

Features

GL BARRIER promotes the recyclability of mono-material high barrier packaging.
GL BARRIER is available in both PP and PE-based grades for mono-material packaging. Despite its single material composition, it still retains its high barrier properties and various functions.

Links

Learn more: Mono-material Barrier Packaging

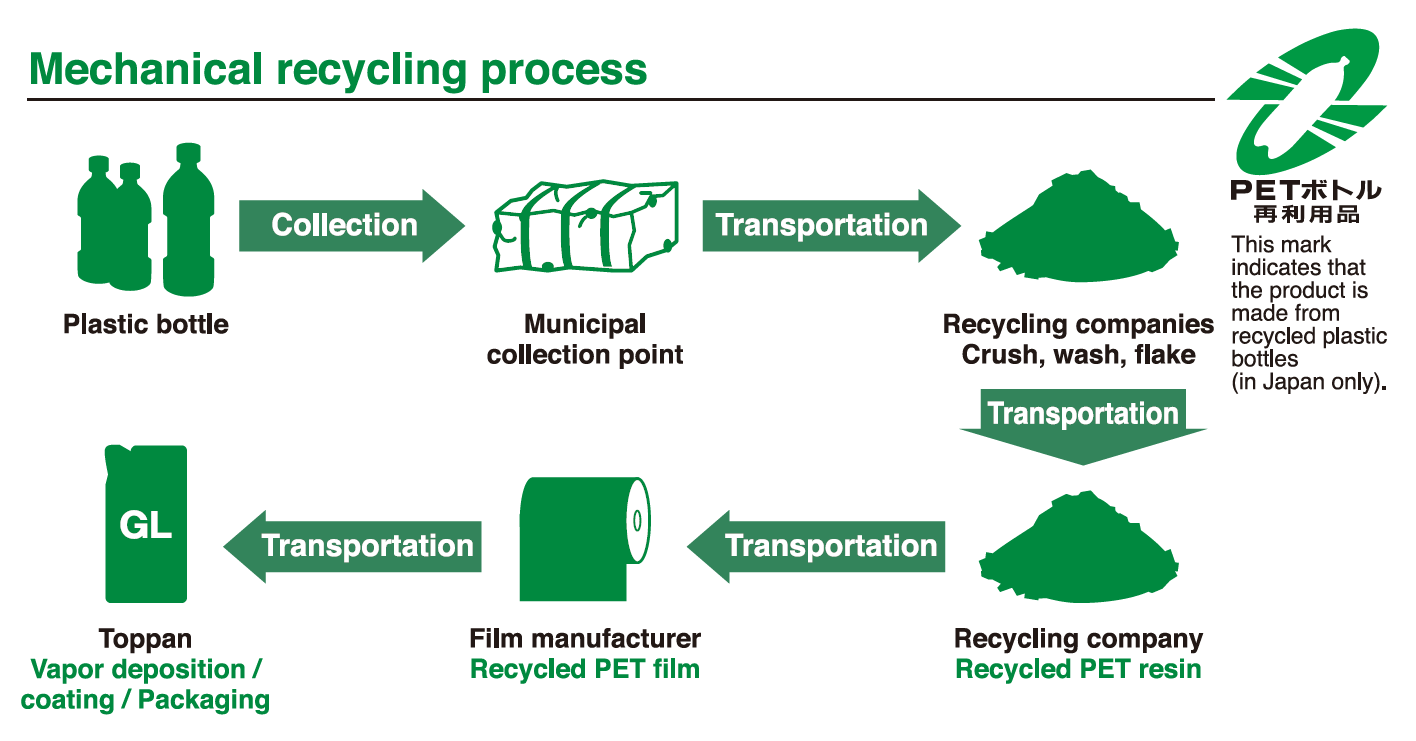

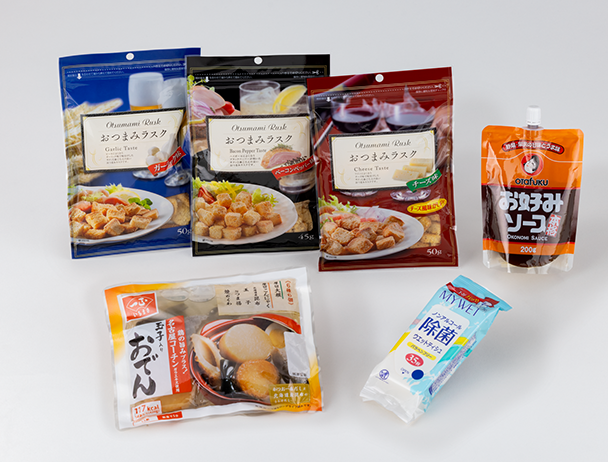

Mechanically Recycled PET Grade

The base material contains mechanically recycled PET from the plastic bottles. It promotes the use of recycled resources. The film has high barrier properties by using GL BARRIER technologies.

Features

The film uses 80% of recycled resin in order to reduce the amount of petroleum resources.
TOPPAN’s patented vapor deposition and coating technologies provide the world’s highest level of barrier properties and a wide range of product lineup.
Reducing CO₂ emissions by approximately 17% compared to general trans parent vapor-deposited barrier films.

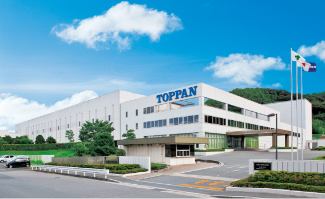

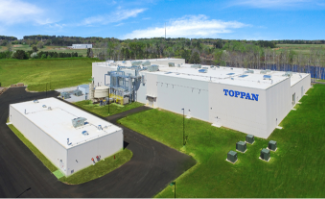

Production Site

GL BARRIER production system (BCP)

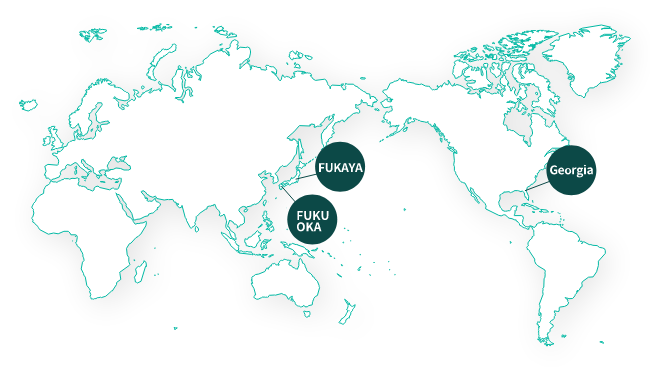

We have established a production system for barrier films at five plants in four countries, Japan, the USA, Czech and India. It enables and secures the prompt and stable supply of high-quality products on a global scale.

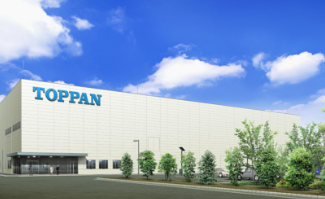

FUKAYA Factory

FUKUOKA Factory

Georgia Factory

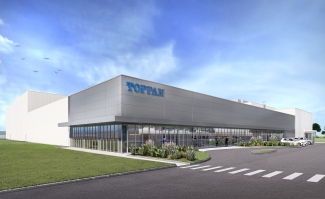

CZECH Factory

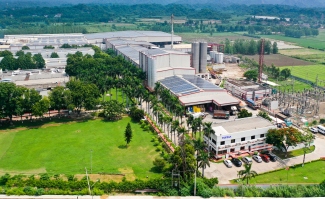

INDIA Factory

Customer Support
With offices in Japan, the U.S., and Europe, we are able to monitor and react to local demands whilst providing excellent customer support.
