Specification outline
Spec overview
| Etching size | 500mm×600mm(max) |
|---|---|
| Material thickness | 0.015mm(min)、0.300mm(max) |
| Delivery form | Roll or Sheet |
| Type of metal | Cu, SUS, 42Alloy, Al, Inver, etc. |
| Manufacturing process | Photolithography |
| Special processing | Bonding of flames, Surface treatment, etc. |

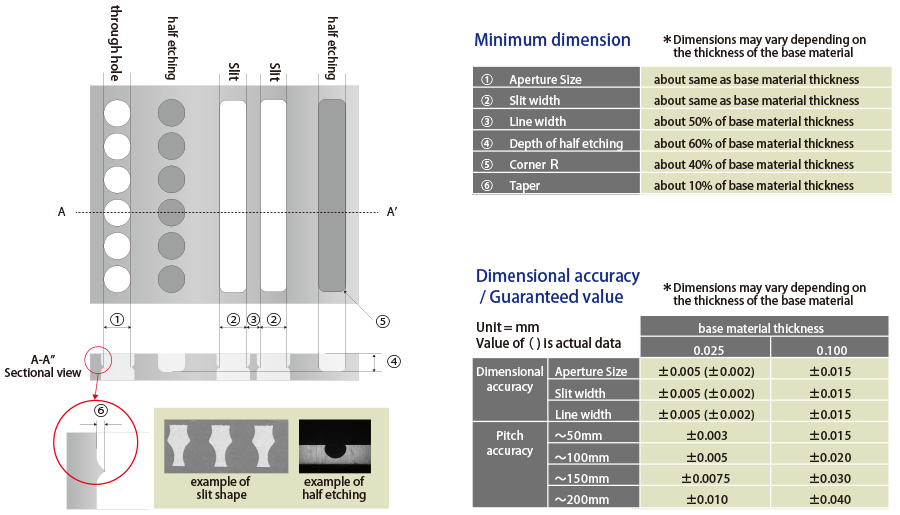

Standard value of processing dimension
