Anti-reflection films for various types of displays

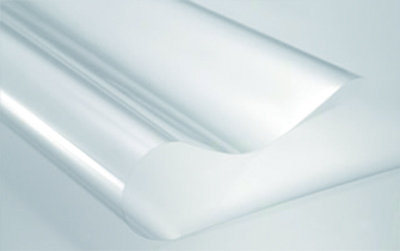

Antireflection Films (Surface Treatment Films)

Antireflection film is an optical film to be laminated on the front surface of a display in order to minimize reflection of light from outside and of viewing person. Various types of antireflection films can be provided for different applications, examples of which include low reflection (LR) film that realizes the excellent antireflection property, antistatic performance and higher contrast; antiglare (AG) film that controls reflection with excellent antiglare properties.
In addition, such film effectively protects the display by reinforcing physical properties, durability and anti-soiling.

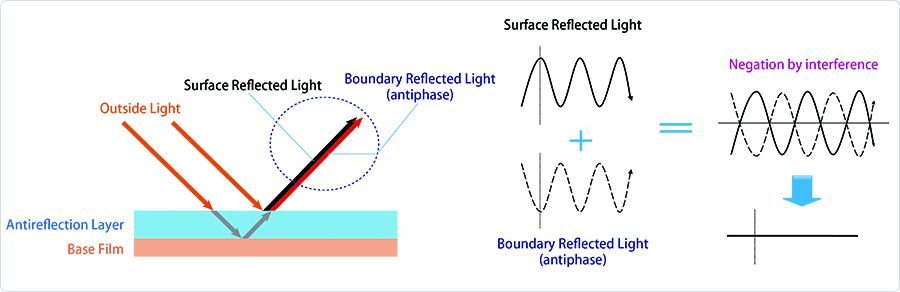

The principle of preventing light reflection (LR)

The film structure is designed so that the lights reflected on the antireflection layer and the boundary face of the base film have the same amplitude with the opposite phase. Reflection is restrained as two different lights are negated by interference.

The principle of preventing light reflection (LR)

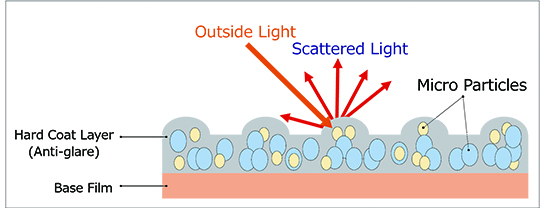

The principle of preventing screen glare (AG)

Within the hard coated layer that was formed over the base film, microparticles whose light refraction factors differ from that of its resin are deployed. As such particles disperse external light, glare on the screen is diminished.

The principle of preventing screen glare (AG)

Features of the products

  • In addition to Clear and AG films, our lineup of 4 types include a film on which an antireflection (low reflection) layer is laminated.
  • Roll-to-roll type, allowing mass production
  • Overall production including hard coat and saponification process

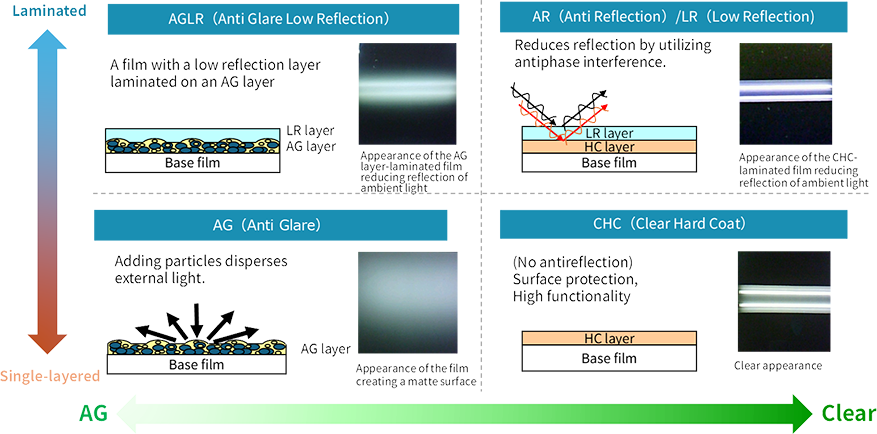

Features of the product
LR
(Low Reflection)		 CHC
(Clear Hard Coat)		 AG
(Anti Glare)		 AGLR
(Anti Glare with Low Reflection)

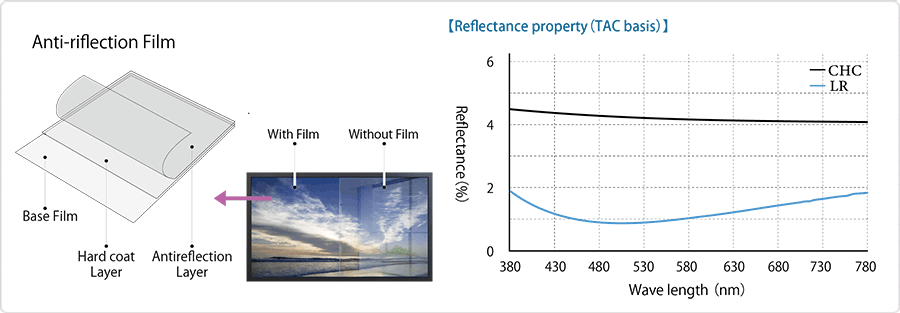

Reflectance 0.1%～1.0% 4.0% - 1.5～2.0%
Structure LR Structure AG Structure CHC Structure AGLR Structure
Features
  • High contrast (color reproducibility)
  • Low reflectivity
  • High antistatic performance
  • High dirt resistance
  • Highly uniform interference
  • High strength
  • Low cost
  • Superior anti-glare performance
  • Function to prevent reflection on the screen
  • Lineup according to application (High haze to low haze)
  • High contrast (color reproducibility)
  • Low reflectivity
  • Superior anti-glare performance
  • High dirt resistance

TOPPAN's approaches

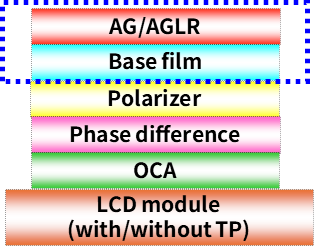

A wide range of AG and AGLR films for PID, automotive and industrial applications.

Films having a different haze of 1% to 60% covering almost all products on the market

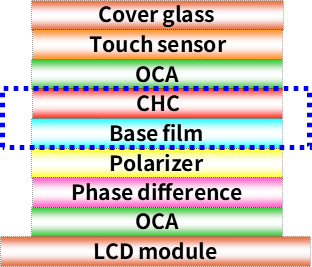

Continuing development of highly functional CHC films for compact applications

Highly functional films are available; thin base materials, high scratch resistance, surface resistance control, UV protection, bending-resistance, surface contact angle (for lamination, antifouling), low moisture permeability, etc.

LR designs tailored to high-spec panels

Films achieving a reflectance of 1% up to 0.3%, reflective hue control matching panel colors, and surface resistivity control

Introduction of affiliated companies

  • Company name
    TOPPAN TOMOEGAWA Optical Films Inc.
  • Products & Services
    Sales, Development, and Manufacture of Surface Treatment Films
  • Head Office
    1-5-1, Taito, Taito-ku, Tokyo 110-0016 Japan
  • President & Representative Director
    Mikio Ishijima
  • Location(Plant)
    Ishikawa plant, Shiga plant Shizuoka plant
  • Location(Sales)
    Tokyo, Kyoto
  • Investment ration
    TOPPAN Inc.：84.9% TOMOEGAWA Corp.：15.1%
